CST Berger 57-LMH-CUPK Electronic Self-Leveling Horizontal Single Beam Rotary Laser Level Complete...
|
Tools & Hardware > CST Berger > Item 5
 |

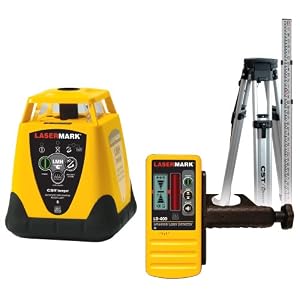

CST Berger 57-LMH-CUPK Electronic Self-Leveling Horizontal Single Beam Rotary Laser Level Complete...
|
by CST/Berger
Sales Rank: 13889
|
List Price: $995.00
$775.55
At Amazon
on 11-29-2008.
|
|
Features
3/32" @ 100ft Accuracy with a Working Range of 1000ft in diameter
3 Degree Self Leveling Range with Anti-Drift Warning System to keep you working without question
Heavy Duty Glass Enclosed Laser Beacon ensures that the laser head is protected from the elements
Single Button Operation Makes use a breeze, just set it up and press "ON" and you are ready to level
2 Year Factory Warranty
Manufacturer Description
The CST/Berger 57-LMHCUPK Electronic Self Leveling Single Beam Rotary Laser Level offers fast and simple leveling power to handle your toughest jobs with less manpower. With one button operation, the 57-LMHCUPK levels itself via electronic sensors interfaced with motors and precision software eliminating the need for re-leveling or rechecks. No more fussing with leveling screws or level bubbles. The built in Anti-Drift System (ADS) or height of instrument alert provides peace of mind when working on busy job sites, by alerting the operator that the instrument has been moved due to tripod movement, accidental bumps or ground settling. Additionally, the 57-LMHCUPK achieves an accuracy of 3/32" at 100ft and has a working range of up to 1000ft in diameter when used with the included Upgraded LD400YEL 7-Channel Laser Detector. The laser has a self leveling range of +/-3 degrees which takes the guess work out of setting up the instrument. Just make sure that the tripod head is generally level, place the laser level on the tripod and turn it on. The laser takes care of the rest. The 57-LMHCUPK has a rotation speed of 600RPM which makes the 57-LMHCUPK useful for not only general leveling with the detector and rod, but also with many laser machine control systems available. The 57-LMHCUPK laser level is powered by 4 standard D-cell alkaline batteries which will power the unit for up to 75+ hours of continuous operation, and the laser level features a battery level indicator that will alert you when the power is running low. This keeps you up and running day in and day out. The 57-LMHCUPK laser also features a heavy duty glass enclosed laser beacon. This enclosed beacon allows the unit to be used in almost all weather conditions. Included with each kit: 57-LMHCUPK Rotary Laser Level, 4-Alkaline Batteries, LD400 7-Channel Laser Detector, Detector Rod Bracket, Aluminum Tripod, 8ft Aluminum Builders Rod in Ft/Inches, All-in-One Carrying Case and Owner's Manual.
Product Description
Easy-to-use one-person operation for general construction and site preparation. Servo motor-driven fully electronic self-leveling with built-in Anti-Drift sensor Anti-Drift/Manual indicator and shut-off laser when unit moves. Rubberized base protects against shock dust and water. 5/8`` x 11 mounting thread fits flat head tripods. Heavy-duty glass lighthouse protects beacon from moisture and dirt. Built-in 4 D alkaline batteries for +/- 30-hour intermittent use or rechargeable Ni-Cd pack for 12+ hour s. Weighs +/- 5.5 lbs. with batteries. 650nm visible red beam diode. 1 degree/4 second speed self-leveling. Up to 1000` diameter working range up to 2000` with laser detector. 600-RPM rotation speed single beam for optimal use with detector or depth sensor. 22 to 120 degrees Fahrenheit operating temp. LASER DETECTOR with rod heavy-duty clamp bracket that adjusts to square or oval rods. Features 7 channels of info indicating position. Memory feature preserves last position of beam. Built-in filtering for bright sunlight and electromagnetic interference. Front and rear LCD displays with indicators: 3 distinct tones (high, on-grade, low), speaker volume (off, medium, high), low battery, and beam resolution (fine, medium, coarse). Rugged, gasket-sealed waterproof case with pushbutton power, audio, and beam controls. Auto shut-off after 6 minutes of inactivity to save battery (requires 9-Volt for 3-months use). Contains 8"H x 6-1/4"W x 6-3/8"D laser level with indicators for LED power, low battery, and Anti-Drift System; 6-2/3"H x 3"W x 1"D, 10-oz. No.57-LD400 universal laser detector, compatible with most visible or invisible rotary lasers; and accessories including aluminum tripod, aluminum sighting rod, hard-shell case, batteries, and instruction manual.
|
CST Berger 57-LMH-CUPK Electronic Self-Leveling Horizontal Single Beam Rotary Laser Level Complete...
Available from Amazon
Price: $775.55
Updated on 11-29-2008.
|
|
|
